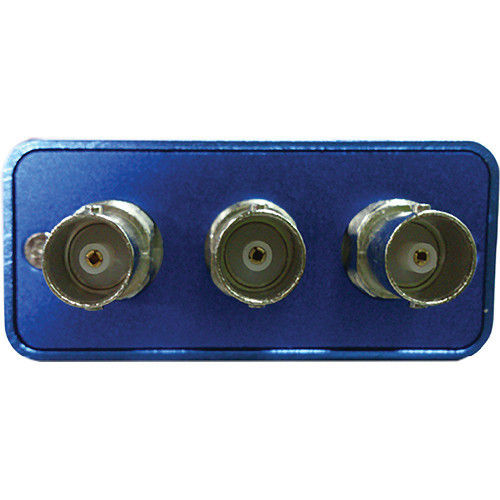

MMIO VDA 1 x 4 Analog Video Distribution Mini Box

Availability: Usually ships the next business day.

The MMIO VDA is a miniature 1 to 4 general purpose analog video / sync. distribution amplifier which is suitable for any analog SD/HD TV video signal or SDTV Bi-level sync pulses, black reference, or HDTV Tri-level sync pulses.

MMIO VDA 1 x 4 Analog Video Distribution Mini Box

Name: MMIO VDA 1 x 4 Analog Video Distribution Mini Box
SKU: MMIO VDA

SKU: MMIO VDA

$139.00

Quantity

One analog video input

Four distribution outputs

Support PAL/NTSC and auto-sensing input

Power supply indicator

Input signal indicator

Mini MIO box structure with the size of 96.7x65x28 mm

Power socket with fixing lock

Analog Video Input

Input Interface (TX)	CVBS, BNC connection
Impedance	75 Ω
Format	PAL / NTSC

Analog Video Output

Output Interfa ce	CVBS, BNC connection
Impedance	75 Ω
Signal Amplitude	1 Vpp
White Level	0.7 V
H-sync Level	-0.3 V
Peak Level	Color Sync Peak: 300 mv
Status Indicat or	Input signal status indicator Power indicator (indicated by shining or extinguishing of the green LED)
Power Consumption	12 VDC, 1.5 A
Dimensions	3.8 x 2.5 x 1.1" (96.7 x 65.0 x 28.0 mm)

Packaging Info

Package Weight	0.95 lb
Box Dimensions (LxWxH)	7.559 x 4.488 x 2.913"
